- E-Type Front Derailer
A front derailer designed to be secured to the bicycle by the right-side bottom bracket mounting ring or cup, instead of clamping to the seat tube.
E-type derailers are commonly used on bicycles that have non-round seat tubes that are incompatible with standard clamp-type front derailers. An E-type derailer also may be used on a small-wheel bicycle where the chain slants down toward the rear hub, or on a bicycle with rear suspension that would get in the way of other derailers. E-type derailers do not provide any adjustment other than the high and low limit stops, and rotation around the bottom bracket.
It is hard to install an E-type derailer wrong, but on the other hand, it must be used only with the specific sizes of chainrings for which it was designed, and with a bottom bracket cup or mounting ring that has a shoulder to retain the derailer.
See also my Article on Front Derailers
- The general term "eccentric" refers to two circles whose center is not at the same point. The primary bicycle usage refers to the special bottom brackets used on better tandems and some other cycles, which allows the bottom bracket to be moved slightly for purposes of fine-tuning chain length.
A tandem synch chain runs between two bottom brackets, and the front bottom bracket is usually mounted in an eccentric. This is a cylindrical part with a large hole running parallel to its axis. This hole is sized and threaded to accept a normal bottom bracket assembly.
The cylinder mounts into an oversized shell located where a normal bottom bracket would be. The outer shell may use pinch bolts or setscrews to secure the moveable eccentric cylinder in position. Some eccentrics use a wedge bolt system, similar to that of a handlebar stem, so secure the cylinder. For more details on this, see my article on Adjusting Tandem Synch Chains.
Eccentric bottom brackets are sometimes used on single bikes too, especially because they permit adjustment of chain tension without moving the rear axle. This is useful if the bicycle is fitted with a rear disc brake or an internal-geared hub.
White Industries makes a rear hub with an eccentric axle, designed to permit use as a fixed-gear or singlespeed without a chain tensioner, on frames with vertical dropouts .
- Elan 12-speed hub
- SRAM/Sachs briefly offered a 12-speed internal-gear hub around the year 2000. Unfortunately, it was a flawed design, and almost all of them broke. They are heavy, too! This hub achieved 12 speeds in steps which became narrower toward the top of the range, using an unusual and clever design. No parts are available, they can not be repaired.
See the separate article on Elan hub history.
- An elastic polymer, a springy plastic used commonly as a spring or shock absorber, particularly in suspension forks and similar mechanisms.
An "elastomer fork" is a suspension fork which uses elastomers as the active suspension element. Elastomers are also used in some suspension stems, seatposts and saddles.
- Shortly after the development of the chain-driven "safety " bike in the late 19th century, it occurred to many people that there could be some benefit in making chainwheels of elliptical shape, rather than round, as a way to tailor the instantaneous gear ratio to the position of the rider's legs at various parts of the pedal stroke.
The most obvious way to do this was to put the long axis of the chainwheel perpendicular to the crank. This was intended to accomplish two things:
This design looks good on paper, based on a static analysis of the pedal forces, but it turns out to be hard on riders' knees. This is partly because the ratio is too high during the "power" phase of the pedal stroke, encouraging the rider to push too hard.
- Provide a higher ratio when the cranks were horizontal, when the rider can apply the most power to the pedals.
- Provide a lower ratio when the cranks are vertical, to get the cranks through the "dead center" position as quickly as possible.
In addition, this system causes the legs to "snap" as they change direction too fast at the top and bottom of the stroke. It is my belief that this is the major reason this type of elliptical chainwheel is harmful to riders' knees.
In the 1980s, Shimano developed a non-round (but not exactly elliptical either) chainring called "Biopace ®" that was oriented in the opposite direction, so the long axis was roughly parallel to the arms. This was based on a dynamic analysis of the riders' pedal stroke, considering speed as well as force.
See my separate article on Biopace Chainwheels.
- En danseuse
- From the French, "dancing on the pedals." Pumping; pedaling while standing up. This is not an efficient pedaling style, but sometimes gives a welcome relief by providing a change of position.
Cyclists who pedal this way a lot of the time often do so because their saddles are too low, or their gears are too high.
- Endrick Rims
- A style of rim found on most English 3-speeds that are designed for cable-operated brakes. This is a plain steel rim, with the braking surfaces slightly angled inward toward the hub.
- English Racer
- This is a term used by ignorant people in some parts of the U.S. to refer to a 3-speed "sports" type bike. This is a very foolish designation, because the bikes involved, while usually English, have absolutely no connection with racing.
- Effective Rim Diameter. This is the rim diameter measured at the nipple seats in the spoke holes, plus the thickness of the two nipple heads. The E.R.D. is needed for calculating the correct spoke length.
See also the Spocalc Spoke Length Calculator on this site.
- Ergo, Ergopower ®
- A combined brake/shift lever for drop handlebars, made by Campagnolo. Similar to S.T.I., Ergo uses an auxiliary lever inside the brake lever to select larger sprockets, and a thumb button on the inboard side of the lever to select smaller sprockets. This has the advantage, compared with S.T.I., of using a different motion for upshifting and downshifting, reducing the risk of accidentally shifting the wrong way.

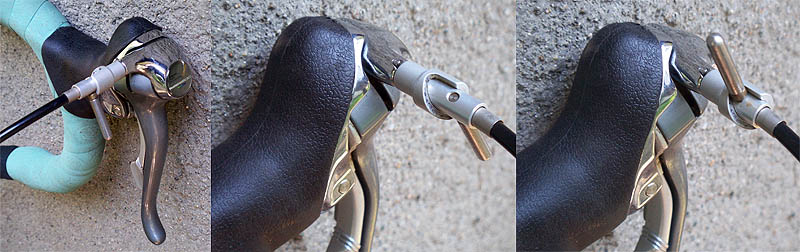

- Erickson Gizzmo ®
- Early models of Shimano 's STI brifters were only designed for use with double chainwheels. The Erickson Gizzmo was an aftermarket cam device that permitted a double type front STI shifter to work with a triple crank. The normal position had the lever facing down, and the STI brifter worked as a normal double, using the middle and large chainring. When you flipped the lever up, the cam moved and gave extra slack to the cable, permitting access to the granny gear .
- European Tire and Rim Technical Organization. This is the modern system for designating tire and rim sizes, but it has been adopted by the ISO, so the designation "E.T.R.T.O." is obsolescent.
This system is explained in detail in my article on Tire Sizing
- Euro Bottom Bracket
- BMX slang for an ISO /British bottom bracket , as opposed to a threadless "Ashtabula " American style bottom bracket designed for one-piece cranks .
- See Shimano Models and Buzzwords
- See wedge
- The length of the part of the stem that runs forward from the shaft to the handlebar clamp. Stems are available with different length extensions to allow the bicycle to be adapted to fit the rider. See also my article on Frame Sizing.
Extension (or "reach") is commonly measured from the centerline of the shaft to the center of the handlebar. Unfortunately, common industry practice is to measure this along the direction of the part that points forward. Since different styles of stems have different shapes, two stems with the same extension measurement may not have the same actual distance between the centerline of the handlebars and the steering axis.
Occasionally the term "extension" is used as a synonym for a handlebar stem, particularly one with a long extension.
- Extension levers
- In the early 1970s, many people bought bicycles with drop handlebars, for reasons of fashion, even though drop bars did not suit their casual riding style. Given the frame and stem designs commonly available at the time, it was generally impossible to get drop handlebars high enough up to allow a low-intensity rider to reach the drops comfortably.
The problem was worse for many women, whose shorter torso made it hard to reach forward to the drops. Though a taller handlebar stem with less forward reach might be installed, this often did not occur. Also, small hands could not comfortably grasp typical drop-bar brake levers of that time.
Dia Compe invented bolt-on extensions that allowed Weinmann-type brake levers to be operated from the tops and middle of the handlebars, making this type of bar bearable for casual cyclists, since they never had to use the drops. This was so popular that Weinmann traded licensing with Dia Compe, so that each could copy the other's products.
(Stem shifters were also popularized around the same time, and for the same reason.)
This system has several drawbacks:
- The extension lever partially applied the main brake lever, reducing the available lever travel. Not all brands/models suffered from this, but the most common ones did.
- The attachment hardware precluded the use of the top of the brake lever hood as a comfortable riding position.
- They encouraged the practice of riding with the hands on the top, middle section of the bar, which is a position that doesn't give very secure control, especially on bumpy surfaces, because the hands are too close together.
- The hardware that held the extension levers to the main levers was prone to fall off.
Other manufacturers produced similar systems, some of which addressed some of these difficulties.
Extension levers are sometimes known as "safety levers." Since many people believe they actually reduce safety, the slang terms "death grips", "suicide levers" and "turkey wings" are occasionally substituted.
In the early 21st century, a greatly improved system of "interrupter brake levers " appeared, with all of the advantages and none of the drawbacks of the older extension levers. These also have the advantage of being compatible with modern "æro" brake levers which work a lot better than the older style levers that had the cables coming out of the tops.
- See "Puller."
- Extrusion is a process for manufacturing aluminum parts of basically linear shape by squeezing semi-molten metal through a nozzle shaped to form the desired cross section. The process is very much like the way frosting cake decoration is done.
The principal application in bicycles is the fabrication of aluminum rims.
- A reinforcement in a spoke hole of a rim. Eyelets provide a wider bearing surface against the rim, making it less likely for the nipple to pull through the rim. They also provide a smoother surface for the nipples to turn against while they are being tightened. Also sometimes called "ferrules"
|Rim without eyelets
||Rim with eyelets
||Rim with recessed spoke holes and no eyelets
||Rim with recessed spoke holes and eyelets
||Socketed rim with eyelets
- A braze-on or other threaded fitting for bolting an accessory to a frame. This term is mainly used to refer to the threaded tabs on fork ends, to which you may attach fenders or racks.
- The process of finishing the flat surfaces of the frame and fork to which bearing assemblies attach. Correct facing of the head tube, fork crown, and bottom bracket shell ensures correct alignment of the headset and bottom bracket bearings. This is necessary to ensure good bearing performance and reliability.
Facing requires highly specialized milling equipment, among the most expensive of bicycle tools. Even minimal tools to do this job cost several hundred dollars.
- A lightweight shell that covers all or part of the rider/bicycle. Fairings are primarily intended for improving the ærodynamics of the vehicle, and they are generally prohibited from organized bicycle racing.
Some fairings are designed less for ærodynamics than for the sake of protecting the rider from cold and rain.
- False flat
- A section of road that looks level, but is actually slightly uphill.

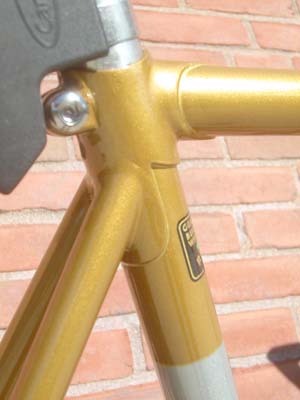

- A style of seat cluster in which the seat stays butt up directly against the back of the seat tube, rather than the sides. Sometimes supposed to provide a "stiffer", "harsher" ride. I don't believe it, but it is a light and nice-looking style.
- A bicycle with tires wider than the 2.125 inches traditional with mountain bikes or cruisers, sometiems as wide as 5 inches (127mm). Fatbikes are especially suitable for riding on soft surfaces such as sand and groomed snow. The frame, front fork, rims and bottom bracket must be specially designed to accomodate the wide tires.
- Fatigue (metal fatigue) is the property that causes metal to break after repeatedly being bent or flexed. This is a common cause of spoke breakage, and can also affect frames, handlebars and other parts.
A familiar example of metal fatigue is experienced if you open a pop-top beverage can then flex the top back and forth a few times.
Aluminum is more prone to metal fatigue than steel is, so aluminum parts have to be designed a bit stronger to make up for this characteristic.
Note, this is a very simplistic description of a rather complicated process.
- Abbreviation for the baby-talk expression: "Fall Down, Go 'Boom'"
- Fear from the Rear****
- Fear of motor vehicles coming from behind. This leads to many bicyclists' riding timidly close to the edge of the road, and neglecting other hazards in front of them -- for example, riding too close to parked cars, using only a taillight at night, or fatalistically, no lights at all. In reality, rear-end crashes are rather rare compared with others, except on narrow, high-speed rural roads. Fear from the rear is addressed by understanding of how to communicate with motorists using hand signals and lane position, and with safety equipment including lighting at night and bright-colored clothing.
- A covering for the upper part of the wheel, to protect the bicycle and rider from spray when riding in wet conditions. The best fenders run close to the wheels, and cover a large arc. They are supported by wire stays that attach to the forkends. Short fenders that attach without stays do not give enough protection to be worthwhile.
In Britain and the Commonwealth countries fenders are called "mudguards."
- A metal or plastic fitting that slips over the end of a run of cable housing to provide a solid base for the end of the housing.
- Rim eyelet
- Fillet Brazing
- A process in which frame tubes are brazed directly to one another, without the use of lugs. The "fillet" (pronounced "fill-it") is the strip of brass melted along the seam to connect the steel parts. The fillet is usually filed smooth, so that the tubes seem to flow smoothly into one another with no sharp transitions.
See also Mike Rother's article on Fillet-Brazed Schwinns on this site.
- The radical feminist saying "a woman needs a man like a fish needs a bicycle" has inspired humorous images of fish riding bicycles on various bicycling accessories, clothing, etc. John Allen has traced the saying to its source and provided numerous examples. [This entry by John Allen, wouldn't you know.]
- Gary Fisher
- Two Gary Fishers are important figures in the world of bicycling -- neither the movie actor!
- Gary Fisher, one of the pioneers of the mountain bike phenomenon and a founder of Fisher Mountainbikes, now owned by Trek.
- Gary Fisher the researcher, co-author with Kenneth Cross of the Cross-Fisher study, which in the 1970s for the first time defined categories and relative rates of different types of car-bike collisions.
- Fish mouth
- See: Miter
- Fit-Kit ©
- A proprietary system for fitting a bicycle to a rider, devised by Bill Farrell, of Lebanon, New Hampshire. The Fit-Kit has two principal parts:
- Bicycle fitting: Various dimensions of the cyclist's body are measured, then entered into a book of tables (or a computer program) which will then suggest a frame size, starting saddle height, top tube/stem length, and seat tube angle.
- Cleat fitting: Fitting pedal cleats to the cyclists shoes, using a special pair of floating pedals with indicators. (Known as the R.A.D.--Rotational Adjustment Device) The indicators on the R.A.D. show the natural angle of the cyclist's foot on the pedal. By adjusting the cleats so that the foot engages the pedal at i's natural angle, harmful stress to the knee may be minimized.
Also see the article on this site about shoes and pedals.
- Fixed Cup
- In a conventional threaded bottom bracket, the left cup is adjustable, and its position is secured by a lockring. The right cup is not adjustable, its position is fixed, usually by a shoulder which presses against the side of the bottom-bracket shell. The fixed cup is screwed all the way into the bottom bracket, until the shoulder stops it.
The fixed cup usually has a left-hand thread to prevent it from coming unscrewed due to the action of pedaling.
Bicycles with French or Italian threading have right-hand threaded fixed cups; these fixed cups must be tightened very firmly to keep them in position. Using blue (removable) thread-locking compound also is a good idea.
- Fixed Gear
- A rear hub in which the sprocket is rigidly connected to the hub, without a freewheel.
See the entry on "Track Hubs" for details.
The pedals of a fixed-gear bicycle revolve whenever the rear wheel turns; coasting is impossible. This type of gearing is usually associated with track racing. See my article on fixed-gears.
- Fixing Bolt
- The bolt which holds a cotterless crank onto its axle.
- A raised circular rib around a part.
- The usual use for this term in bicycle usage is to refer to the part of a hub that the spokes attach to.
Most hubs in current production are "small-flange" or "low-flange" designs, where the flange is no taller than it needs to be to provide a suitable place for the spoke holes to be drilled.
"High-flange" or "large-flange" hubs have a larger flange, usually drilled out for lightness. They transmit torsional forces with less stress to the spokes than small-flange hubs do, but this is not a problem in practice with modern equipment. High-flange hubs can make a wheel with slightly greater lateral strength than equivalent small-flange hubs, because the spokes create a wider bracing angle to the rim. This makes them popular with track sprinters, who create greater-than-normal side loads on their wheels.
- A less common bicycle use of "flange" is to describe a particular style of axle nut, commonly seen on cheaper bicycles. See track nut.
- A branch of freestyle cycling done at ground level. Usually involves spins, and standing on different parts of the bicycle, sometimes moving forward, sometimes backward, sometimes balancing at rest. In flatland tricks, sometimes the bicycle is caused to move by turning one of the wheels directly with the hand or foot.
- Flexstem ®
- A handlebar stem with a pivot and an elastomer bumper to provide suspension for the handlebar, a product and trademark of Girvin Offroad cycles.
- Flint Snatcher
- British: Tire saver. The gravel in the macadam of some European roads has pointed-enough pebbles to flat bicycle tires, at least the older, cotton-cord tires. In the USA, the problem is more usually glass.
- Flip-flop hub
- A double-sided hub, intended to take a sprocket or freewheel on each side. The gear of a one-speed bicycle could be changed by removing the wheel, and installing it backwards. Most flip-flop hubs are intended to accept a fixed sprocket on one or both sides.
There is a special BMX variant of flip-flop hub which is intended to take a single-speed freewheel on each side. This type has a standard thread on one side, and a smaller thread on the other side, which fits special undersized 15- and 14-tooth freewheels. (There is not room to fit a freewheel mechanism inside of a 15-tooth or smaller sprocket, with a normal sized hub.)
- A property of a clipless pedal system that allows the rider to rotate the foot within limits, as opposed to a fixed cleat which holds the shoe at a fixed angle in the yaw axis. Float helps to avoid knee problems, though for many cyclists it is sufficient for a cleat to be adjusted correctly. Most people toe out.
Pedals with float allow you to rotate your heel inward or outward to some extent before disengaging the cleat.
Also see the article on this site about shoes and pedals.
- Folding Bicycles
- Bicycles with a hinged frame which allows them to be made more compact for transport or storage. Most but not all folding bicycles have small wheels, also for the sake of compactness.
Forging is a process of forming metal parts by the use of heat and pressure. Forging develops a grain structure in the metal, making it stronger in the direction that it has been stretched. Forging is done in special molds called "dies", and when the dies are properly designed to take advantage of the grain structure introduced by the forging process, the resulting parts are stronger in the important directions than those manufactured by CNC machining
See also Jeff del Papa's article on Forging, Casting & CNC Machining on this site.
- Usually refers to the front fork, the part of the frameset that holds the front wheel. The fork is attached to the main frame by the headset. The fork consists of the two blades that go down to hold the the axle, the fork crown, and the steerer.
The term "rear fork" is sometimes used to refer to the part of the frame that holds the rear wheel.
Joshua Putnam has a good discussion of forks and Bicycle Steering Geometry on his Web site.
- The diamond frame has evolved over the course of more than a century, and every dimension has been tinkered with and fine-tuned to the point that it is a nearly perfect design for the tubular materials commonly used.
This is not to say that it is the ultimate, however. For some applications, the cross frame is still viable, and for moldable materials, monocoque designs may yet eclipse the diamond. It is also not at all clear that the diamond design lends itself to suspension applications.
- Usually, a "frameset" will consist of the frame and fork. In some cases, it may also include a headset and/or a seat post, or other parts peculiar to the frame.
- Frame Size
- Frame size generally refers to a measurement of the seat tube. This is measured from the center of the bottom bracket to somewhere near the top of the seat tube. Unfortunately, manufacturers disagree about where to figure the top of the seat tube, so the same frame may have as many as 8 different size numbers attached to it, depending on the manufacturer!
- Frame size may be measured in inches or centimeters.
If you ask a bike salesperson "what size frame do I need", and get back a number as an answer, without specifying a particular make and model group, you are not getting good advice.
- Some manufacturers measure "center-to-center ", i.e. to the intersection of the center of the top tube with the seat tube.
- Some measure to the intersection of the top of the top tube.
- Some measure to the top of the seat tube (which protrudes a variable amount above the top tube.)
- Some measure, on bikes with a sloping top tube, to where the seat tube would end up if the top tube didn't slope!
- A further complication is that different bicycles have different-height bottom brackets, so the stand-over height of two different frames may differ, even though both are 58cm center-to-center!
In my opinion, seat-tube length is not the most important frame dimension anyway. See my article on Frame Sizing for the details.
- Paradise on Earth for the cyclist. I have several pages on Cycling in France.
- A special type of rear hub used for freestyle tricks. Unlike most hubs, a freecoaster permits the bicycle to be rolled backwards without causing the cranks to turn backward as well.
The only other type of hub that offers this feature is a coaster brake. Freecoaster hubs use a similar mechanism, only without the actual brake.

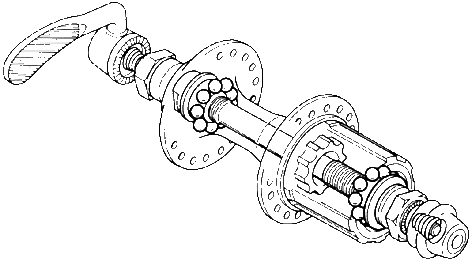

- Freehub ®
- Shimano trademark for a rear hub in which the freewheel mechanism is built into the hub itself, rather than being part of the sprocket cluster. Most freehubs use a cassette of sprockets.
See also my article on Shimano Cassettes.
- This is mainly a marketing term. Generally refers to off-road riding that is also off-trail. Freeride bikes are similar to downhill bikes, with long travel suspension, but are generally a bit lighter and are set up for climbing as well as descending.
- Stunt riding, and the bicycles evolved for this purpose from BMX-style bikes. Freestyle bicycles resemble BMX machines, but are heavier, more rugged, and feature pegs, platforms and other places to stand. Freestyle riding is divided into "flatland" and "aerial" classes.
Freestyle bicycles usually are equipped with the "Potts modification" and a "rotor" which allow the handlebars and fork to be turned 'round and 'round at will without tangling the brake cables.
- The mechanism that makes coasting possible. A ratchet mechanism that allows the rear sprocket(s) to drive the wheel when pedaled forward, but allows the wheel to turn forward independently even when the sprockets are not turning. In other words, the freewheel is the part which makes coasting possible.
Freewheels are normally sold with the sprockets attached, so this term is frequently used as a synonym for a cluster.
A standard freewheel attaches to a hub by screwing on to external threads that are part of the hub. The action of pedaling tightens the freewheel down on the threads, so no tools are required to install a freewheel.
To remove a freewheel requires a special tool, commonly called a "freewheel puller" or "freewheel extractor"
This tool is a splined unit that may be mounted in a vise or turned with a wrench. The splines engage matching splines in the interior (non-rotating) part of the freewheel body. Different brands of freewheels have used different spline patterns, but there is a recent tendency to standardize on the Shimano pattern.
Older freewheels had simple notches and matching extractors with two or four "bosses" (prongs.) This obsolete system was prone to failure, and it is easy to ruin the tool and the freewheel while trying to remove the freewheel. When using a boss-type freewheel puller, the tool should be secured against the freewheel by tightening down the axle nut or quick release skewer.
The standard I.S.O. thread for freewheels is 1.375 x 24 TPI, the same as for standard I.S.O bottom brackets.
See also my article on freewheels.
- Freewheel Threading
|| 1.378" x 24 tpi
||35 x 1.058 mm
||1.375" x 24 tpi
||34.92 x 1.058 mm
||1.370" x 24 tpi
||34.80 x 1.058 mm
||1.366" x 25.4 tpi
||34.7 x 1 mm
||1.181" x 25.4 tpi
||30 x 1 mm
- Older French bicycles were made to different dimensional standards than most modern bicycles. Areas of difference include:
Attempting to thread together French and non-French parts can result in damage. The letter "D" means "right" (Droite); "G" means "left" (Gauche). French-threaded pedals often can be identified because they carry the markings "D" and "G".
Newer French bicycles are built to Italian or I.S.O. standards For more details on this topic, see my article on French Bicycles.
- Friction shifting
- Shifting operated by a lever that moves smoothly through its range. With friction shifting, the rider must learn exactly how far to move the lever to get from one gear to another. If the rider moves the lever too far, or not far enough, the chain will not line up properly with the sprocket, causing noise and roughness. See index shifting
If your bike has friction shifters, consider upgrading to a modern indexed system. This is a major, very worthwhile upgrade.
- Front Center
- The distance from the bottom bracket to the front axle.
- Front Drive
- A front-drive tandem runs the primary chain from the front bottom bracket all the way to the rear wheel. The more common rear-drive setup runs from the rear bottom bracket.
Front drive is slightly heavier, due to the greater length of chain, and in some cases the stoker's right crank may interfere with the chain. Front drive greatly reduces torsional stress on the frame: with rear drive, the stoker's bottom bracket is being pulled forward on the left by the synch chain, while being pulled to the rear by the primary chain. With front drive, the crossover takes place at the front bottom bracket, where both chains pull to the rear. Front drive also makes chainline an academic, not a practical concern. Since the chain run is so long, all gear combinations may be used without running the chain at a sharp angle.
- Front-Freewheel System (FFS ®)
- Shimano's Front Freewheel System. The freewheel was built into the bottom bracket, so that the chain would turn even when the rider was coasting. This was to allow shifting while coasting--a solution in search of a problem.
See the 1982 Shimano Catalogue on this site.
- FSA ® (Full Speed Ahead)
- Full Speed Ahead is a supplier of bicycle parts.
- FSA ®, FSC ® (Phil Wood)
- Field Serviceable Axle, Field Serviceable Cassette. Older Phil Wood hubs were pressed together with industrial presses, and required special tools for service/bearing replacement.
In 1992, the axles were designed to be "field serviceable." FSA and FSC hubs can be disassembled with just two Allen wrenches , 5 mm for most models, 8 mm for the track hubs. You stick an Allen wrench into the cap at each end of the axle, and unscrew one from the other to release the axle assembly.
FSA Full Speed Ahead ® is also the brand name for a line of bicycle parts.
- A cable housing stop. This is mostly Sturmey-Archer terminology.
- Funny bike
- An extreme time-trial bicycle, usually featuring a top tube that slants down toward the front. Funny bikes are built for all-out speed, with no regard for the rider's comfort.****
