Chainline and Overlocknut Distance on Bicycles with Internal-Gear Hubs
find us on FB
Sheldon Brown photo
by Sheldon "What's My Line" Brown
and John "Gimme Some Space" Allen
Spoke Divider

Chainline

Read this article in connection with the lead article on chainline. That article covers chainline measurement, and adjustment of the chainline at the crankset. This article covers the adjustment of chainline of an internal-gear hub.

This article also lists the overlocknut distance -- an important consideration: different hubs fit different frames.

The word "chainline" refers to how straight the chain runs between the front and rear sprockets. Ideally, both sprockets should be in the same plane, so that there is no sideward motion or stress to the chain. This constitutes "perfect chainline".

Chainline Standards:

Application Dimension Notes
Track/Coaster Brake
Traditional One-Speed
Older internal gear hubs
40.5-42 mm Older bikes with 110 spacing would be on the smaller end of this range
Newer bikes with 120 mm spacing normally use 42 mm. Many newer internal-gear hubs have spacing of 125 to 135 mm, and a large chainline. Internal-gear hubs with rotary shifting (cable pulley inside the right dropou but outboard of the sprocket) generally have a wide spacing and a narrower chainline.
Singlespeed MTB 52 mm Wider chainline need for chainstay clearance on MTBs.

This is close to the chainline of the outer ring of a typical MTB triple.

This chainline is generally used with an overlocknut distance of 130 or 135 mm, so the bicycle frame will clear the chain.

Rohloff Speedhub 54 mm
(58 mm w/13 tooth)
Singlespeed MTB
Alternate
47.5 mm White Industries ENO hubs use this chainline, which lines up with the middle position of a typical MTB triple.
It's also fairly close to the outer position of a typical "road" double.

Spoke Divider

Spoke Divider

Measurements

Older internal-gear hubs generally have an overlocknut distance of 114 through 120 mm and a chainline around 43 mm -- but newer internal-gear hubs vary widely. Most, though not all, have a larger overlocknut distance. Respacing the frame (possible only with steel frames) and adjusting the front chainline are often necessary when upgrading from an older hub. The rear chainline and overlocknut distance may often be increased by adding spacers, or sometimes decreased by using a thinner spacer or locknut.

The table below provides information on most current and recently-discontinued internal-gear hubs. Please feel free to send in information on hubs which are not yet covered.

Shimano information on chainline is spotty. Data in the table is mostly from measurements. SRAM's data is scattered around in product manuals, and easier to access on this page. The table provides information on discontinued Sturmey-Archer hubs from the 1980-2000 period. Sturmey-Archer provides convenient online access to chainline info on current hubs, so this is only linked in the table.

In the table, chainline of hubs sold with only one overlocknut distance is given directly. Chainline of hubs available with different spacings on the left is described differently, as 1/2 OLD minus the distance from the sprocket's centerline to the right locknut face. For example, if the OLD is 130 mm, and the sprocket teeth are 20 mm to the left of the right locknut face, the chainline is 65 mm minus 20 mm, or 45 mm. The same hub with a additional 5 mm spacer at the left, to achieve an OLD of 135 mm, would have a chainline of 67.5 mm minus 20 mm, or 47.5 mm. Often, OLD must be larger with an external brake such as a Shimano Rollerbrake. Some hubs are available with different axle lengths. Three different numbers are given, when applicable, for a sprocket dished inward a flat sprocket and a sprocket dished outward.

Most internal-gear hubs use standard sprockets with a 1.370 inch hole and 3 lugs, held to the driver by a circlip. These sprockets may be either dished or flat. Dished sprockets from SRAM and Shimano are offset by 3 mm. Dimensions given in the table below reflect that dimension. Sturmey-Archer sprockets are offset by 1/16 inch (about 1.5 mm), and so they allow a somewhat narrower adjustment range. With some hubs, there is a minimum sprocket size due to interference problems, or sprockets may only be used dished one way or the other. There is more about sprockets on the main page about internal-gear hubs.

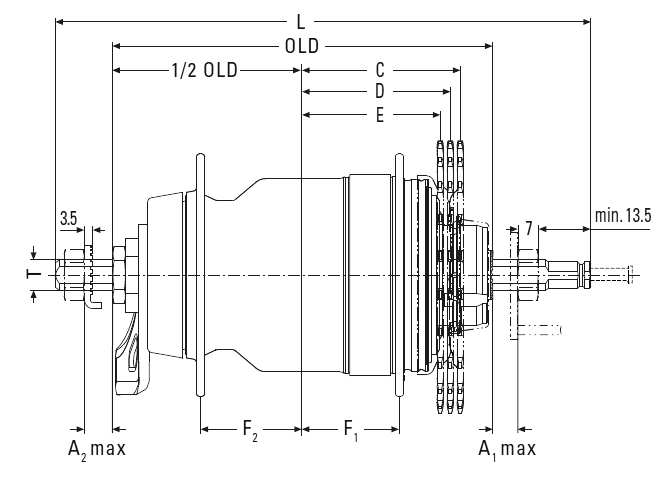

The drawing below is of a SRAM S7 coaster-brake hub. The OLD dimension is 130mm. The dimensions C, D and E are for the chainline with an inward-dished, flat and outward-dished sprocket. The letters C, D and E are used in the table to indicate these three variations.

SRAM S7 cross section

Spoke Divider

Spoke Divider

Chainline of Internal-Gear Hubs
FW=Freewheel C=Coaster D=Drum R=Roller
Model/Type Add spacers left? OLD

Add
Spacers
Right?*

Chainline
(meaning of C, D, E)
Brake? Sprocket Drillings
NuVinci
Nuvinci 170/171 Yes 135 No 51 +/- 0.5 FW, Disk, Roller Thread-on freewheel 32, 36
Nuvinci 360 Yes 135 No 49 +/- 0.5 FW, Disk, Roller Shimano-compatible 9-spline 32, 36
Rohloff
Rohloff Speedhub No 135; larger OLDs available, see Web site. No

54 mm
57.5 mm (13T)

FW, Disk
(see
specs
)
Threaded, non-standard
M 34 x 6 P6
36 (other?)
Shimano
Shimano Nexus 3-speed w/bellcrank Yes 127-135 (different models), see chart Yes 1/2 OLD
- 12 (E);
- 15 (D);
-18 (C)
FW, Coaster, Roller Standard 36 (other?)
Shimano Nexus 4-speed (FW, Roller) Yes 133 (can be less --
see Rollerbrakes article)
Yes 1/2 OLD
- 29 (E);
- 26 (D);
-23 (C)
FW, Roller Standard 36 (other?)
Shimano Nexus 4-speed (C) Yes 120 Yes 42.0 (E);
39.0 (D);
36.0 (C)
Coaster Standard 36 (other?)
Shimano Nexus 7-speed (FW, Roller, Disk) Yes 130 ( can be less w/o brake --
see Rollerbrakes article)
Yes 1/2 OLD
- 18 (E);
- 21 (D);
-24 (C)
FW, Roller, Disk Standard 36 (other?)
Shimano Nexus 7-speed (C) Yes 127 Yes 1/2 OLD
- 18 (E);
- 21 (D);
-24 (C)
Coaster Standard 36 (other?)
Shimano Nexus, Alfine 8-speed (FW, Roller, Disk) Yes 127-135 (less w/o Roller-brake), see chart Yes 1/2 OLD
- 18 (E);
- 21 (D);
-24 (C)
FW, Roller, Disk Standard 36 (other?)
Shimano Nexus, Alfine 8-speed (C) Yes 132.5 Yes 1/2 OLD
- 18 (E);
- 21 (D);
- 24 (C)
Coaster Standard 36 (other?)
SRAM, Sachs
Sachs 3 x 7 (ribbed body) Yes 130 No 1/2 OLD - 20 FW Shimano compatible 7-speed cassette, no 11T 36
Spectro 3 x 7 (3-diameter body) Yes 135 No 1/2 OLD-22.5 FW Shimano compatible 7-speed cassette, no 11T 36
DualDrive II Yes 135 No 42 FW Shimano-compatible 8 or 9-speed cassette 36, 28
DualDrive II Yes 135 No 45 Disc Shimano-compatible 8 or 9-speed cassette 36,32

Singlespeed Fixed/free switchable
Yes 120, 130 Yes 42.5 (C),
46 (D)
FW/Fixed Standard 32
T3 (FW) Yes 118, 127 Yes 38 (C)
41 (D)
44 (E)
FW Standard 28, 36
T3 (C) Yes 118, 127 Yes 38.5 (C)
41.5 (D)
44.5 (E)
Coaster Standard 28, 36
i-Motion 3 (FW) Yes 130 Yes 40.5 (C)
44.0 (D)
FW Standard 32, 36
SRAM i-Motion 3 (Disk) Yes 135 Yes 40.5 (C)
44.0 (D)
Disk Standard 32, 36
i-Motion 3 (C) Yes 130 Yes 40.5 (C)
44.0 (D)
Coaster Standard 28, 32, 36
Torpedo
Pentasport (C)
Yes 122 Yes 43.5 (C, 18)
46.5 (D, 17)
49.5 (E,15)
Freewheel Standard 36
P5 (FW) Yes 122 No 43 (C, 18)
45.5 (D, 16)
49 (E, 16)
FW, Coaster Standard 28, 32, 36
P5 Cargo (C) Yes 122 No 43 (C, 18)
45.5 (D, 16)
49 (E, 16)
Coaster Standard 36
P5 Cargo (Drum) Yes 126 No 45.5 (C, 18)
48.5 (D, 16)
51.5 (E, 16)
Drum Standard 36
P5 Cargo (D) Yes 125 No 44 (C)
47 (D)
50(E)
FW, Disk Standard 36
SPARC
5-sp.
Yes 135 No 49.5 (C)
FW Standard 36
Spectro S7, Sachs Super 7 (FW) Yes 130 No 48 (C, 19)
51 (D, 18)
54 (E)
FW, Coaster Standard 36
Spectro S7, Sachs Super 7 (D) Yes 135 No 50.5 (C, 19)
53.5 (D, 18)
56.5 (E)
Drum Standard 36
G8, G9 Yes 135 No 49.0 All Non-standard, 4 lugs 32,36
i-Motion 9 Yes 135 Yes 48.8 Coaster, Disk Non-standard, 4 lugs 32, 36
Sachs Elan 12-speed No 135 No 45 Coaster, FW Non-standard, 6 lugs 36
Sturmey-Archer (w/Shimano 3mm dished sprockets)
Elite AT3 (D) Yes 120 and up Yes 40-49 Drum Standard 36 (other?)
Sprinter Coaster Yes 120 and up Yes 40-49 Coaster Standard 36 (other?)
SAB (D) Yes 120 and up Yes 39-48 Drum Standard 36 (other?)
Elite AT5 (D) Yes 120 and up Yes 39-48 Drum Standard 36 (other?)
X-RD5 (D) Yes 130 and up Yes 43-52 Drum Standard 36 (other?)
Sprinter 7 Elite (D) Yes 130 and up Yes 37-46 Drum Standard 36 (other?)
X-RF8/RD8/
RR8/RC8
Yes 115 (w/o brake) and up Yes 1/2 OLD - 26 (D) Plain Non-Standard, 3 lugs 36
Sturmey-Archer current hubs

Overlocknut distance and chainline are given in the technical specifications linked at the bottom of the page for each hub, here on the Sturmey-Archer Web site. Sprockets are standard except with the 8-speeds and the S3X fixed-gear hub. Spacers may be added at either side, as long as axle end nuts engage fully.

Spoke Divider

Spoke Divider

Chainline Adjustment, Sprocket Spacers and Dishing

Chainline may be adjusted at the rear wheel by rearranging spacers on the rear axle, and with a steel frame, also by re-spacing the rear dropouts to allow use of a longer or shorter rear axle.

Spacers, if any, are located just behind the outer locknuts, between the locknuts and the cones. You will need cone wrenches and a general understanding of hub bearing adjustment to do this job. Spacers can be added at the left end of the axle of most internal-gear hubs; sometimes, also at the right end.

It is almost always possible to add spacer washers on the left side of an internal-gear hub, or in many cases, to remove a washer or use a thinner locknut. Almost all internal-gear hubs are designed so bearings are adjusted only on the left, and many have the driver, or a rotary shifting mechanism, immediately inside the right dropout. In this case, attempting to adjust or remove parts on the right may result in difficult reassembly or damage. It may be possible to add a spacer on the right, if there is still enough axle extension to hold the right-side axle nut -- and any shifter parts which are outside the dropout. Use a locknut as a spacer, with a washer under it as needed to increase space further.

If you add equal thicknesses to both sides, the chainline is unaffected, since it's measured from the middle outward. Hubs whose OLD can be adjusted use conventional threaded axles, so you can increase the spacing by removing the locknuts and adding spacer washers. The width which can be added is limited by the need for the axle nut to engage enough threads on the axle and the thickness of the left dropout

Axle Re-Spacing/Re-Dishing

If you add more spacers to one side, or move them from one side to the other, you can change the chainline, but this will disturb the alignment of a disc brake rotor. Once you have respaced the hub, you'll need to re-dish the wheel by adjusting the spokes.

If a hub requires wider spacing than your bicycle has, and a steel frame, you can usually respace the frame.

Also see our article about frame spacing.

Spoke Divider

Spoke Divider

Sprocket Dishing

As mentioned, most internal-gear hubs have 3-lug "dished" sprockets that can be installed either dished in, or out, providing a choice of two different chainlines. Flat sprockets also are available. Interference with the hub or frame may prevent use of a small sprocket and/or determine which dishing will work. A sprocket may install perfectly well on the hub, but the chain still can interfere, so check with a chain.

Sprocket-Spacing Washers

Older Sturmey-Archer internal-gear hubs have two 1/16" (1.6 mm) spacer washers next to the sprocket. These can be arranged in various ways, along with the dishing of the sprocket, to optimize chainline.

Spoke Divider

Thanks to John Dacey, Marten Gerritsen Jens Hansen and Nilay Kothari for some of these data.
