Dupuis 1952T.A. And Stronglight Cranks From Harris CycleryWe love old French bicycles, but it can be hard to find parts for those built to older French standards and dimensions.
|

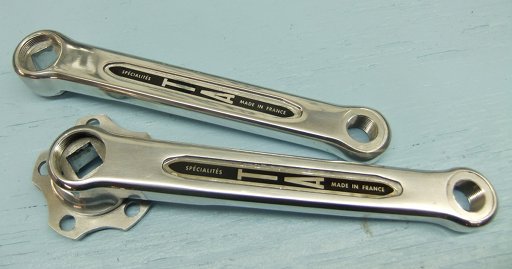

For many, many years the T.A. Cyclotouriste was THE triple, and was standard eqiupmemt on virtually all top-of-the-line touring machines. They are unusually light, and have very narrow tread (a.k.a. "Q-factor"). Cyclotouriste triples work best for half-step plus granny setups, where the middle chainring is only a few teeth smaller than the large one.They don't work with many newer "MTB-type" front derailers, due to tight clearance between the outer ring and the inside of the arm.
As it turns out, half-step-plus-granny setups work better with "double" type front derailers anyway.
The Cyclotouriste is unbeatable as a wide range double, however. Here's an example:
This is on my Hetchins, it's a 50-28 double, running with a 12-28 9-speed cassette in back.
It is mounted on a Shimano UN series bottom bracket, 115 mm. This sets the chainline up closer in than most double cranksets.
The idea of this setup is that the 50 tooth chainring is usable with all 9 rear sprockets, and on most rides the 50 is the only chainring I use.
The 28 tooth chainring is the emergency "bail out" gear for unusually steep hills, or for when I'm all tuckered out. It is only used with the larger rear sprockets, but when I need that low a gear, I don't mind the big jump.
These cranks come in an unusually wide range of crank lengths, and offer an unusually wide selection of chainring sizes, from 26 up to ...? We have a limited stock, but have a regular source to order from. Click here to see a gear chart for this setup.

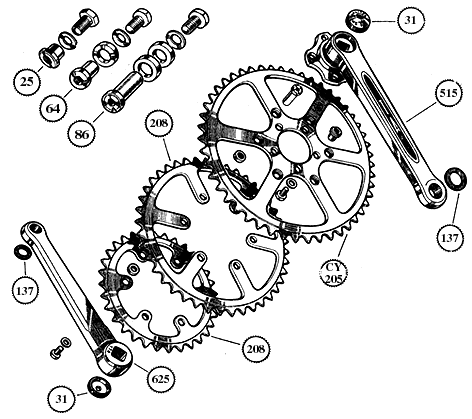

| Ref.# | Description | Options | Price | |
|---|---|---|---|---|
| 515/625 | Cranks (pair) | 167.5, 170, 172.5, 177.5, 180 & 185 mm lengths | $299.95  | 6082 aluminum (#31 Dust caps and #137 pedal washers included) Sorry, individual cranks are no longer available, pairs only. These had been discontinued, but TA did a production run to commemorate an anniversary. |
| 31 | Dust cap | Metal | Sorry, all gone. | These dustcaps are the proprietary TA 23 mm size, fit Cyclotouriste and Tevano cranks. They take a 5 mm Allen wrench, do not overtighten. Make sure to lubricate threads. They do not fit Alizé or Zephyr cranks. |
| 137 | Pedal washers | Protects crank from damage by pedal shoulder. | $4.95 pair | |
| 25 | 5 bolts/nuts/washers to attach outer chainwheel to crank | $14.95 set of 5
| ||
| 64 | Chainring bolts/nuts/washers for double chainwheel sets | $16.95 set of 6
| ||
| 86 | Chainring bolts/nuts/washers for triple chainwheel sets | 17.95 set of 6 | ||
| "SPÉCIALITÉES TA MADE IN FRANCE" foil labels for the sides of the arms. | 7.5 X 97 mm | Sorry, no longer available. | ||
Finally! An affordable French thread bottom bracket set!
Features:
Oversize sealed bearings Boron steel hollow axle Alloy cups Weight: 258g (110mm) Square taper (JIS)
Grand Cru 103mm BB3411 $49.95
Grand Cru 107mm BB3413 $49.95
Grand Cru 110mm BB3414 $49.95
Grand Cru 113mm BB3415 $49.95
Grand Cru 116mm BB3417 $49.95
Grand Cru 122mm BB3419 $49.95
Many French bikes sold before the late 1970s used the now-obsolete French bottom-bracket threading:35 mm x 1mm (1.378" x 25.4 TPI), right-hand thread on both sides.instead of the ISO standard threading:1.370/1.375 x 24 TPI left-hand fixed cup, right hand adjustable cup.If your frame is made for a French-thread bottom bracket, a standard adjustable (right) cup will fit in, at least a little way but it will be very loose and will be unusable.We were probably the last online source for loose-ball French bottom bracket parts, but the supply has been exhausted.
The only alternative currently in production is Phil Wood. They're a great product, but expensive.
Swiss-thread Bottom Brackets
Many Swiss bikes, and French bikes sold in the late 1970s/early '80s (especially Motobécanes and later Peugeots) used the now-obsolete Swiss bottom-bracket threading:35 mm x 1mm (1.378" x 25.4 TPI), left-hand-threaded fixed cup (right side), right-hand-threaded adjustable cup (left side.)The diameter and thread pitch are the same as French, but the Swiss fixed (right side) cup has a left-hand thread.
We were probably the last online source for loose-ball Swiss bottom bracket parts, but the supply has been exhausted.
The only alternative currently in production is Phil Wood. They're a great product, but expensive.
T.A. Bottom Bracket Spindles/Axles
Sorry - No Longer Available
Chainwheels
Some 5-bolt crank sizes:
"C-C" is the distance between adjacent stack bolts.
This is easier to measure directly than the actual Bolt Circle Diameter. Click on BCD size to see what we've got availableA more comprehensive version of this chart is available on our Drive Train Page
BCD
(mm)Smallest
RingC-C
(mm)Application 144 41 84.6 Old Campagnolo standard, still used for track applications. 130 38 76.4 Standard Road double 128 38 75.2 Nervar (Obsolete, not available) 122 38 71.7 Stronglight 93, others 110 33 64.7 Touring double, standard triple outer 86 28 50.5 Stronglight 99, some SR triples.
TA Cyclotouriste/5 vis
Note: Due to the ever dwindling supply and demand of/for these chainrings, we are no longer offering them. The listing here is for reference only.
These classic chainrings mount on T.A., Stronglight and other older cranks with a 50.4 mm bolt circle. The outer chainring mounts to the crank by this small circle of bolts, and additional chainrings bolt to the outer chainring using special hardware.The Cyclotouriste was the original triple touring crankset.
Cyclotourites double chainwheel sets can give a wider range than any other double chainwheel set available, with rings as small as 26 teeth.
The Cyclotouriste triple works best with an old-fashioned "half step plus granny" setup, where the middle chainring is only a few teeth smaller than the large ring. This works with a "double" type front derailer.
The Cyclotouriste triple is not a good choice if you want the middle ring to be much smaller than the outer. This sort of setup calls for a "triple" type front derailer, with a highly 3-dimensional outer cage. Such derailers require more clearance inside the right arm than the narrow tread Cyclotouriste arms provide. If you try to run such a setup with a "double" type front derailer, upshifting from the small to the middle ring is likely to be difficult.
TA 5vis/Cyclotouriste Chainrings 7075 T6 #208 Inner & Middle Position #CY 205 Outer Position 26, 28, 29, 30 teeth N/A 31, 32, 33, 34, 35 teeth N/A 36, 37, 38, 39, 40 teeth N/A 36, 37, 38, 39, 40 teeth N/A 41, 42, 43, 44, 45 teeth N/A 41, 42, 43, 44, 45 teeth N/A 46, 47, 48, 49 teeth N/A 46, 48, 49 teeth N/A 50, 51, 52, 53 teeth N/A 50, 51, 52 teeth N/A 54, 55, 56, 57, 58 teeth N/A 59, 60, 61, 62, 63 teeth N/A 64, 65, 66, 67, 68 teeth N/A Cotters
French 9 mm Cotters $2.50/each
The diameter is standardized, but the bevel is not, so it is often necessary to do a bit of filing to get the correct angle and depth of bevel.They should generally be replaced in pairs.
T.A. Cyclotouriste
"Jeux de Grain" bolt sets for early T.A. Cyclotouriste cranks. No longer available.
The very early versions of the T.A. Cyclotouriste crakset used a special axle that was round with one sharp corner. The cranks were secured by these bolts, which look something like traditional cotters. They are not, however, traditional cotters. The bolt has a sliding bushing that presses on one side of the axle, while the special nut presses on the other side.
