Cranks and Cranksets from Harris Cyclery

Biopace	110/74 mm "Touring" Triple	110 mm "Compact" Double	130 mm BCD Single/Fixed Gear	130 mm BCD "Road" Double
130/74 BCD "Road" Triple	T.A. Cyclotouriste	Tandem	Bottom Brackets	Chainrings

If you don't see what you're looking for here, try our Quality Bicycle Products Special Order Catalogue



130 mm BCD Cranks for fixed-gear/singlespeed applications

For road applications with fixed gears, you can buy a genuine track crankset, but we normally recommend modifying a "road" double instead.

"Road" cranks are typically considerably less expensive, and use the 130 mm bolt circle, for a much better choice of chainrings at reasonable prices.

Any of the "road" double cranks listed below can be converted to single at no charge. We'll remove one of the chainrings (usually the big one) and replace the original long stack (chainring) bolts with short ones made for single chainring use. We keep the other chainring and long stack bolts to cover our labor in making the conversion.

If you prefer a different size chainring than comes on one of these cranks, we'll generally substitute a Rocket Ring or similar chainring of your choice of size at no additional cost.

165 mm is Good!

We generally recommend 165 mm length cranks for road fixed-gear use. This shorter length makes it easier to spin faster cadences, and also reduces the risk of striking a pedal while cornering (with a fixed gear, where you have to pedal through the corners, this can be an issue.)

We're always looking out for closeout special deals on 165 mm road cranks for this purpose, and a number of these are listed below.



130 mm BCD "Road" Double Cranks

Special Purchase! Sun Tour Cyclone 7000 Cranksets $79.95 160 mm only

Don't need no steenking pins and ramps? These are gorgeous cranks, with 42/52 chainrings. These N.O.S. cranksets were probably made in the early 1990s

These use the traditional tapered-square bottom bracket.

These use 130 mm BCD chainrings, same as the other "road" cranks listed here.

690 grams including the metal threaded dustcaps.

BB Spindle Length	Chainline between rings	Tread ("Q" Factor)	Clearance Arm from frame midline
110 mm	43.1	146.2	30.1
113 mm	44.6	149	31.6

Special Purchase! Shimano 2004 165 mm Sora Double Crank Sets $69.95

These are very nice, low-profile cranks, using the standard "road" 130 mm bolt circle. We mainly sell these for fixed gear use, and stock them 165 mm length only. We have them available stock, as a 39/52 double, or the fixed-gear-ized version, with the stock rings removed and single stack bolts used to secure a 42 or other Tuf-Neck ring of your choice.

The deal on Sora cranks is that the arms are very nice aluminum ones. The reason they're cheaper is that the stock chainrings are steel--but for fixed-gear use, we replace the rings anyway, so they're a great deal. Standard BB is 110 mm.

For more details, and other cranks suitable for fixed gear use, see the

Special Purchase! Shimano Ultegra/600 FC6400 Cranksets $99.95 165 mm Only

These are beautiful cranks, with Superglide 42/53 chainrings. The chainrings are round with some special teeth to facilitate shifting, but without the pins and ramps that newer models use.

Polished aluminum finish. Machined chainrings.

These 1990 vintage cranks use the traditional tapered-square D3H or D5H bottom brackets, 113-115 length. Use a 107 mm bb to line the outer ring position up with a track hub.

Special Purchase! Shimano 105 FC-1055 Cranksets $79.95 165 mm or 170 mm

These are excellent cranks, with Superglide chainrings. The chainrings are round with some special teeth to facilitate shifting, but without the pins and ramps that newer models use.

The arms have a pearlescent painted finish, rings natural aluminum (stamped.)

• The 170s come with 42-53 chainrings, plastic wrapped O.E.M. packaging.
• The 165s come with 42-52 chainrings, in consumer box packaging.

These use the traditional tapered-square D3H or D5H bottom brackets, 113-115 length. Use a 107 mm bb to line the outer ring position up with a track hub.

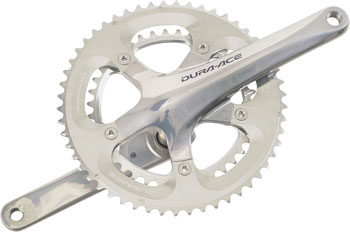

New! Shimano Dura-Ace "10 speed" Double 53/39 Teeth

Shimano's best double crank. Lightweight ollow arms, oversized hollow spindle is permanently attached to right arm. Outboard bearing system, super trick!.

Uses Shimano Integrated Bottom Bracket (not included)

Shimano Dura-Ace FC7000 Double 170 mm	39/53 teeth CR0829	$409.95	42/53 teeth CR0830	$409.95
Shimano Dura-Ace FC7000 Double 175 mm	39/53 teeth CR0833	$409.95	42/53 teeth CR0834	$409.95
Shimano Dura-Ace FC7000 Double 180 mm	39/53 teeth CR0837	$409.95

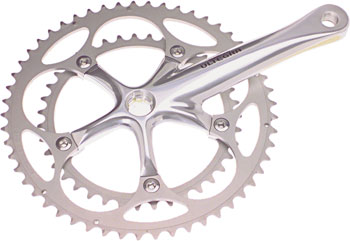

Shimano Ultegra Double 53/39 Teeth

Shimano's second best double crank. Lightweight ollow arms, 670 grams.

Uses Octalink V1 Splined Bottom Bracket 109.5 mm.

Shimano Ultegra FC6500 Double 165 mm	39/53 teeth CR6314	$159.95
Shimano Ultegra FC6500 Double 170 mm	39/53 teeth CR6326	$159.95
Shimano Ultegra FC6500 Double 172.5 mm	39/53 teeth CR6332	$159.95
Shimano Ultegra FC6500 Double 175 mm	39/53 teeth CR6338	$159.95



"Road Triple" 130/74 mm Crank Sets

The manufacturers think you're not smart enough to avoid using the small chainring with the smaller rear sprockets. If they're wrong about you, you can get a serious climbing gear by substituting a smaller "granny" ring.

Since the 42 and 52 rings are ramped and pinned to improve shifting, you're probably better off leaving the stock ones in place, but there are no ramps or pins on the small ring, since you never shift up onto it.

24, 26 or 28 tooth 74 mm chainrings $19.95 and up

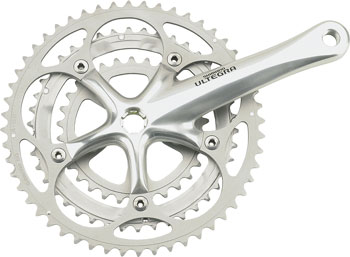

Shimano Ultegra Triple 52/42/30

Shimano's best full-sized triple crank. Lightweight ollow arms, 670 grams.

Uses Octalink V1 Splined Bottom Bracket 118 mm.

Shimano Ultegra Triple 165 mm	CR6340	$159.95
Shimano Ultegra Triple 170 mm	CR6352	$159.95
Shimano Ultegra Triple 172.5 mm	CR6358	$159.95
Shimano Ultegra Triple 175 mm	CR6364	$159.95

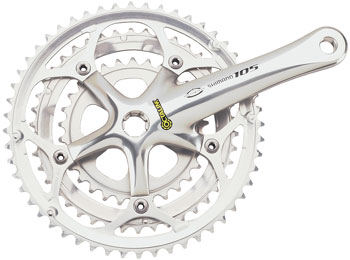

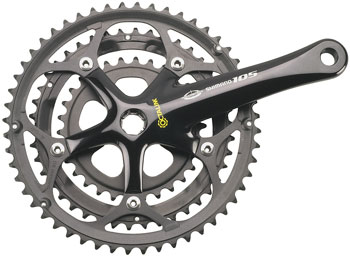

Shimano 105 Triple 52/42/30

Shimano's best value triple crank, 742 grams.

Uses Octalink V1 Splined Bottom Bracket 118 mm.

Shimano 105 Triple 165 mm	Silver CR4770	$159.95	Black CR4773	$159.95
Shimano 105 Triple 170 mm	Silver CR4771	$143.95	Black CR4774	$143.95
Shimano 105 Triple 175 mm	Silver CR4772	$143.95	Black CR4775	$143.95

Shimano Tiagra Full Size Triple 52/42/30 $87.95

This is Shimano's best model that uses the traditional tapered square spindle. We stock the 165 & 170 lengths; 175 available on special order.

113 mm UN53 bottom bracket $19.95

Shimano Tiagra Triple 165 mm	CR2446	$159.95
Shimano Tiagra Triple 170 mm	CR2447	$159.95
Shimano Tiagra Triple 175 mm	CR2448	$159.95

Shimano Sora Full Size Triple 52/42/30 $72.95

Basically the same as Tiagra, but with steel chainrings, so it's a few grams heavier (but the chainrings will last a lot longer!) Uses the traditional tapered square spindle. We stock the 165 & 170 lengths; 175 available on special order.

113 mm UN53 bottom bracket $19.95

Shimano Sora Triple 165 mm	CR3352	$72.95
Shimano Sora Triple 170 mm	CR3354	$72.95
Shimano Sora Triple 175 mm	CR3356	$72.95

More Shimano "Road Triple" options from Quality Bicycle Products

Traditional 110/74 mm "Full Sized Triple" Cranksets

Sugino XD600 full-sized Triple Crank Sets 46-36-26 Now in 165, 170 mm or 175 mm length $89.95 These are very nice, low-profile cranks, using the classic 110/74 mm bolt circle. An excellent choice for touring applications. The XD600 has aluminum outer rings with pins/ramps to facilitate shifting. Use standard 113/118 mm square bottom bracket. Sugino XD300 full-sized Triple Crank Sets 46-36-26 165 mm, 170 mm or 175 mm length $59.95 These are very nice, low-profile cranks, using the classic 110/74 mm bolt circle. An excellent choice for touring applications. The arms are the same as the XD600, but all three chainrings are steel with pins/ramps to facilitate shifting. This is the model to choose if you want to customize the sizes of the chainrings. Use standard 113/118 mm square bottom bracket.



Tandem Cranksets

Tandem Cranksets from Quality Bicyle Products

110 mm BCD "Compact" Double Cranksets

These permit the use of chainrings as small as 33 teeth on a double crank set.

Click here for individual 110 mm BCD chainrings

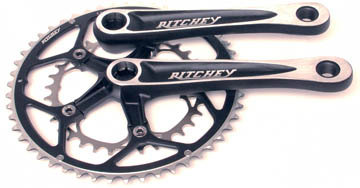

New! Ritchey WCS 110V Cranksets 50-34 Shimano V1 spline $169.95

These fit a 109.5 mm Shimano V1 splined bottom bracket (Dura- Ace, Ultegra, 105)

They arms are cold forged of forged TRX50 aluminum. The outer chainring is 7075 aluminum with ramps and pins to facilitate smooth shifting. The inner chainring is hardened steel for long life.

570 grams.

Ritchey WCS 110V Double 170 mm 34/50 teeth	CK733	$169.95
Ritchey WCS 110V Double 172.5 mm 34/50 teeth	CK734	$169.95
SRitchey WCS 110V Double 175 mm 34/50 teeth	CK735	$169.95

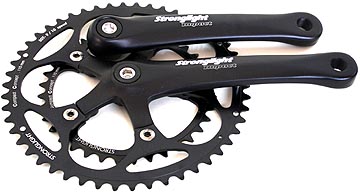

New! Stronglight "Impact" Cranksets 50-36 Square Taper $139.95

These very high quality cranksets use traditional square bottom brackets.

They are made in France of forged 6061 aluminum, with ramps and pins to facilitate smooth shifting.

107 mm bottom bracket for 43.5 mm chainline (first choice); 110 bb bottom bracket 45 mm chainline (second choice.) 630 grams.

Stronglight "Impact" Double 170 mm 36/50 teeth	CK21708	$139.95
Stronglight "Impact" Double 172.5 mm 36/50 teeth	CK21728	$139.95
Stronglight "Impact" Double 175 mm 36/50 teeth	CK21758	$139.95

FSA Carbon Pro Elite Double 110 BCD

These use a 108 mm I.S.I.S. splined bottom bracket

FSA Carbon Pro Elite Double 175 mm 34/50 teeth	CR4212	$297.95	FSA-carbon-pro-double.jpg" WIDTH="350" HEIGHT="252" BORDER=O>
FSA Carbon Pro Elite Double 170 mm 36/46 teeth	CR4216	$297.95
FSA Carbon Pro Elite Double 175 mm 36/46 teeth	CR4218	$297.95

34 Teeth not small enough for you?

Check out the original "compact double": TA Cyclotouriste, chainrings available as small as 26 teeth!

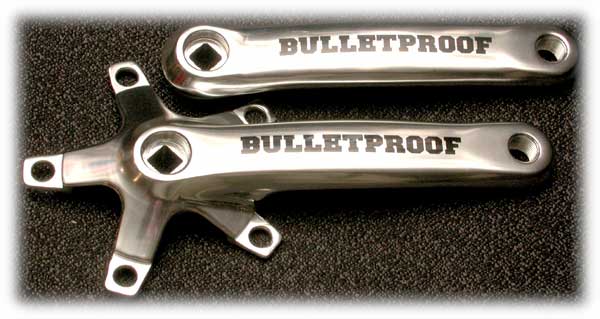

Bulletproof 110 BCD Cranks only $34.95

Bulletproof BMX cranks can be used as a single or double chainring setup.

These use the highly versatile 110 mm bolt circle, and fit standard tapered-square bottom bracket axles.

Chainline w/107 mm bottom bracket:

• 43.4 mm as double (middle of spider)
• 47.1 mm outer ring
• 39.7 mm inner ring
• 158 mm tread ("Q factor")

530 grams/pair (165 mm)

Arms only, no bolts nor chainrings included.

Lengths available (not all in stock): 140 mm, 150 mm, 155 mm, 160 mm, 165 mm, 170 mm

More 110 mm Compact Double Cranksets from Quality Bicyle Products
