Bottom Bracket and Crank Tools
If you don't find it here, check the Quality Bicycle Products Catalogue online.
Bottom Bracket and Crank Tools
See Also Sheldon Brown's Tool Tips Articles
| Bottom Bracket Tools | |||
|---|---|---|---|
| For Cartridge Bottom Brackets | |||
| Park | BBT-22 | $17.95  |
 For Shimano cartridge
bottom brackets. New version is compatible with Shimano "pipe billet" splined axles.
|
| Shimano | TL6028 | $16.95 |
 For Shimano cartridge
bottom brackets. Use with 32 mm headset wrench...
no provision for attaching a ratchet handle or torque wrench.
|
| Park | BBT-4 | $9.95 |
 For external splined Campgnolo bottom brackets (Veloce, Mirage) and Sachs. |
| Park | BBT-5 | $7.95 |
 For Campagnolo Record, Chorus and Athena BBs, cassette lockrings.
|
| Park | BBT-9 | $21.95 |
 The BBT-9 is for Shimano's Hollowtech II two-piece crank systems. The big end has 16 notches to fit the external bottombracket bearing cartridges. The small end has 8 notches to fit the splines of the adjusting bolt in the left arm. |
| Phil Wood | TL131 | $14.95 | Portable/Consumer mounting tool For Phil Wood Bottom Brackets
Only
|
| Phil Wood | TL132 | $47.95 | Professional shop model For Phil Wood Bottom Brackets Only
|
| For Loose Ball Bottom Brackets and Fixed-gear Sprocket Lockrings | |||

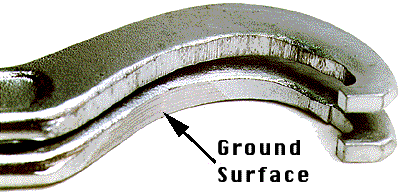

| Hozan | Hook spanner Modified A Harris Cyclery Exclusive! | $24.95
| Double-ended lockring tool--forged, bottom brackets and headsets. These come fairly roughly forged, and as a result the tool has a tendency to slip. We modify the stock Hozan hook tool with a ground contact area on the bottom bracket side to reduce slippage.
The tool of choice.
|
| Park | HCW-5 | $14.95 |
 1 prong and 3 prong hook spanner. |

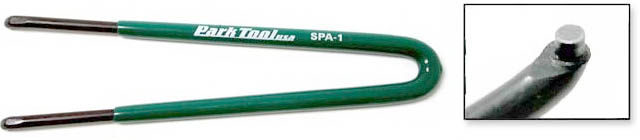

| Park | SPA-1 | $6.95 |
 Adjustable pin spanner wrench (green.) |
|
E.A.I. Keirin Multi Tool $119.95 |
 | ||
| This is a beautifully finished all purpose tool for the track racer, made in Japan for the Keirin racing market. The hook end is both a lock-ring wrench and a "chainless chain whip" (the sprocket fits into the groove.) The box end has a sturdy 15 mm box for axle nuts, and a 10 mm box on the end for "banjo bolt" type chain tensioners, if you use them. At a hefty 320 grams and 220 mm overall length, this is not intended for "on the road" use, but it's a beautiful tool for trackside or for the home mechanic. | |||
| Crank and Chainwheel Tools | ||||
|---|---|---|---|---|
| FSA (Full Speed Ahead) | ||||
| CK029 | $14.95
| Self-extracting Crank Bolts These fit all traditional square tapered bottom brackets. |
| |
| Park | ||||
| CCP-2 | $12.95 | Cotterless crank puller with handle. For traditional tapered square axles/cranks. |
| |

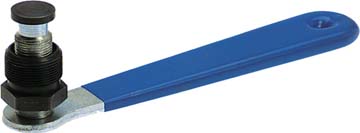

| CCP-4 | $12.95 | Cotterless crank puller with handle. Special oversized head for use with Shimano's new "pipe billet" (splined) axles. |
| |
| New! | CWP6 | $12.95 | New model universal cotterless crank puller. This unit works on all cranks that use normal 22 mm extractor threads, including Shimano Octalink splined and I.S.I.S. splined, as well as almost all square taper cranks. Comes with replaceable pusher head for splined bottom brackets. |
|
| Shimano | ||||
| TL6123 | $7.95 | Chainring bolt tool. This is the ultimate weapon for stuck chainring bolts. The tool grabs the two notches in the nut, with perfect alignment, while also the T handle engages the Allen bolt. When you need this tool, nothing else will do. |  | |
| VAR | ||||

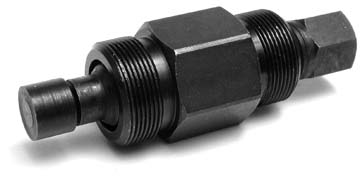

| #393 | $29.95 | Double-ended shop-type crank puller. One side fits standard 22 mm extractor threads; the othe side fits the 23 mm thread used on TA Cyclotouriste cranks. |
| |
| Stronglight | ||||
| $49.95 | J.A. Stein Crank puller for old 23.15 mm thread Stronglight cranks. (1982 and earlier.) This is the only tool currently available to fit these older cranks. Handmade in U.S.A. |
| ||
