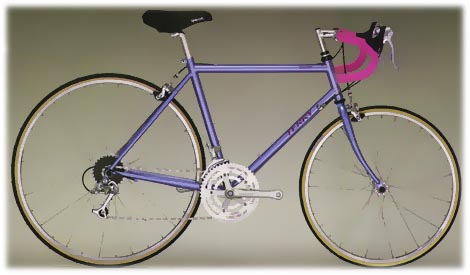

The Terry Symmetry

Frame sizes:	16" 17.5" 19" 20" 21.5"
Colors:	Patriot Blue, Violet

Terry Symmetry Components

Frame and Fork:	Quantum double butted CrMo tubing, TIG welded
Headset:	Tioga SE-II, 1" threaded steerer, English threads
Crankset:	Shimano 105, 165 mm (16",17.5", 19"), 170 mm (20,21.5")
Chainrings	30/42/52
Bottom Bracket:	LP26 Cartridge; 68 mm; English
Front Derailer:	Shimano 105SC triple; Capacity: 22 teeth
Rear Derailer:	Shimano 105SC triple; Capacity: 36 teeth; Largest Sprocket: 28 teeth
Shift/Brake Levers:	Shimano RSX STI levers; 7 speed indexed
Cassette:	Shimano; steel; 13 x 28, 7 speed
Chain:	Shimano HG5O
Brakes:	Shimano RSX dual-pivot sidepull; 37/49 mm reach
Hubs:	Shimano RSX 32 hole; front O.L.D. 1OOmm; rear O.L.D. 130 mm; Quick release
Rims:	Sun ME13ll silver; Presta valve; 32 hole
Tires:	Panaracer Tecnova 25-520, (24") front tire (16", 17.5", 19") PanaracerYivezza 25-622, (700C) rear tire (16", 17.5", 19") Panaracer Vivezza 23-571, (26") Front and rear tire (20", 21.5")
Seatpost:	Road Research SP-265 Alloy, 27.Omm, silver
Saddle:	Terry Women's Sport; black perforated leather cover; steel rails
Stem:	Terry T-Stem road; 65 x 210 mm, -18 degree rise
Handlebar:	Terry T-Bar patented design
Handlebar Tape:	Counion padded Super Ribbon
Pedals:	Wellgo UL908A, medium
Reflectors:	Full CPSC standard
Braze-ons:	Rear rack braze-ons; water bottle bosses; derailer cable housing guides
Weight:	21 Ibs.

Frame Size	Stand Over	Head Angle	Seat Angle	Top Tube	Seat Tube	BB Height	Chain Stay	Fork Rake	Wheel Base
16.0	26.1	72	73	18.9	16.0	10.3	16.7	1.9	37.4
17.5	27.6	72	73	19.0	17.5	10.3	16.7	1.9	37.6
19.0	29.0	72	73	19.3	19.0	10.3	16.7	1.9	37.9
20.0	30.2	72	74	20.0	20.0	10.5	16.9	5.3	39.1
21.5	31.7	72	73	20.8	21.5	10.5	16.9	5.2	39.5

Frame Size	Stand Over	Head Angle	Seat Angle	Top Tube	Seat Tube	BB Height	Chain Stay	Fork Rake	Wheel Base
40.6	66.3	72	73	48.0	40.6	26.2	42.5	4.8	95.1
44.5	70.0	72	73	48.3	44.5	26.2	42.5	4.8	95.4
48.3	73.7	72	73	49.0	48.3	26.2	42.5	4.8	96.2
50.8	76.8	72	74	50.8	50.8	26.7	42.9	5.3	99.4
54.6	80.5	72	73	52.7	54.6	26.7	42.9	5.2	100.4

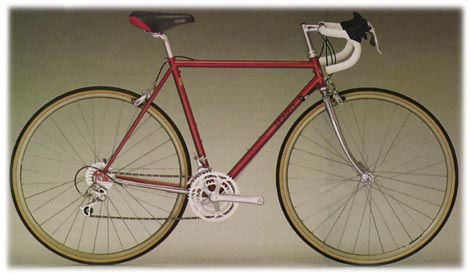

Frame sizes:	16" 17.5" 19" 20.5" 22"
Colors:	Graphite, Arrest-Me Red

Frame and Fork:	Columbus Brain double butted CrMo tubing, TIG welded; Chrome plated Fork and right chainstay
Headset:	Campagnolo Mirage, 1" threaded steerer, English threads
Crankset:	Specialities TA Alize, 160 mm (16") 165 mm (17.5", 19") 170 mm (20.5", 22");
Chainrings	28/38/48
Bottom Bracket:	Cartridge; 68 mm; English
Front Derailer:	Campagnolo Veloce braze-on; Capacity: 22 teeth
Rear Derailer:	Campagnolo Mirage; Capacity: 37 teeth; Largest Sprocket: 28 teeth
Shift/Brake Levers:	Campagnolo Mirage Ergopower control levers; 8 speed indexed
Cassette:	Campagnolo Exa-Drive sprockets; steel; 14 x 26; 8 speed
Chain:	Campagnolo
Brakes:	Campagnolo Mirage sidepull Monoplaner; 40/51mm reach
Hubs:	Campagnolo Mirage 32 hole; front OLD 100 mm; rear OLD I30 mm; Q/R
Rims:	Sun ME14A hard anodized; presta valve; 32 hole
Tires:	PanaracerTouring 28-520,24" front tire (16", 17.5", 19") Vittoria 28-622, 700C front tire (20.s",22") Vittoria 28-622, 700C rear tire (all sizes)
Seatpost:	Sel Cof Aero; 27.2mm
Saddle:	Terry Limited Edition Women's Light Sport; dove grey leather with accents; hollow Manganese Moly rail
Stem:	Terry T-Stem road; 65 x 21Omm, -18 degree rise
Handlebar:	Terry T-Bar patented design
Handlebar Tape:	Selev padded Super Ribbon
Pedals:	None supplied
Reflectors:	Full CPSC standard
Braze-ons:	Internally routed rear brake cable; rear rack braze-ons; water bottle bosses; derailer cable housing guides
Weight:	21 lbs.

Frame Size	Stand Over	Head Angle	Seat Angle	Top Tube	Seat Tube	BB Height	Chain Stay	Fork Rake	Wheel Base
16	26	71.5	73	18.9	16	10.2	16.9	2	37.8
17.5	27.5	71.5	73	19	17.5	10.2	16.9	2	38
19	28.9	71.5	73	19.3	19	10.2	16.9	2	38.3
20.5	30.6	72	73	21	20.5	10.4	17	2.4	40.3
22	32	72	73	21	22	10.4	17	2.4	40.3

Frame Size	Stand Over	Head Angle	Seat Angle	Top Tube	Seat Tube	BB Height	Chain Stay	Fork Rake	Wheel Base
40.6	66.0	71.5	73	48	40.6	26	42.9	5.1	96.0
44.5	69.9	71.5	73	48.3	44.5	26	42.9	5.1	96.5
48.3	73.4	71.5	73	49	48.3	26	42.9	5.1	97.3
52.1	776	72	73	53.3	52.1	26.5	43.2	6.1	102.3
55.9	81.3	72	73	53.3	55.9	26.5	43.2	6.1	102.3
