Brake Levers for Upright ("Mountain") Handlebars

Brake Sets Cables Cable Hardware Calipers
Cantilevers
(Center-Pull)
Cantilevers
(Direct-Pull)
Levers
(Drop Bar)
(Auxiliary)
Levers
(Upright Bar)
Drop Bolts Mafac Parts Pads Shoes
Disc Brakes
Hydraulic
Disc Brakes
Mechanical
Disc Brake
Parts
Drum Brakes
Articles About Brakes

Levers shown here include cable adjusting barrels and reach adjusters that allow the rest position to be adjusted so that even riders with short fingers will be able to reach them.

They require "barrel" type cable ends.

divider

BRL39 DiaCompe Tech 77 Levers $36.95 buy button

DESCRIPTION

DiaCompe Tech 77 Brake levers with stopper button

These well-made levers work well with all traditional rim brakes, road or mountain, but should not be used with "direct pull" ("V type") cantilevers.

Hinged clamps make for easy installation.

These levers incorporate "stopper" buttons that act as a "parking brake." This is a handy feature! Makes it easy to lean the bike against anything and not have it fall over. These are my favorites for upright handlebars (Sheldon)

7/8" (22.2 mm) clamp diameter.

divider

BRL34 Shimano BL-R550 Levers $29.95 buy button

Very nicely made Shimano SLR levers, comfortable, effective and good looking. High quality Shimano cables and cable housing included.

7/8" (22.2 mm) clamp diameter.

DESCRIPTION

divider

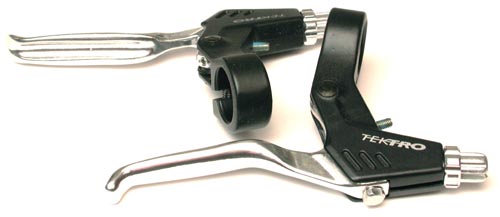

BRL47 Tektro Adjustable Levers $19.95 buy button

These have an adjustment for mechanical advantage, so they work with _all_ types of brakes, including direct-pull ("V-type"), center-pull cantilevers, all types of calipers and drum brakes.

7/8" (22.2 mm) clamp diameter.

DESCRIPTION

BRL56 Tektro RX 4.1 "Reverse" Levers $27.95 buy button

These attach by expander plugs into the ends of the handlebars. They work with normal-travel calipers or traditional center-pull cantilevers, not with "V Brakes" or other "direct pull" cantilevers.

These work with pretty much any type of upright or bullhorn handlebar.

In most applications, they put the part of the lever with the greatest leverage under you strongest, longest fingers, so they have real ergonomic benefits.

DESCRIPTION
